Model: PS14802SFG

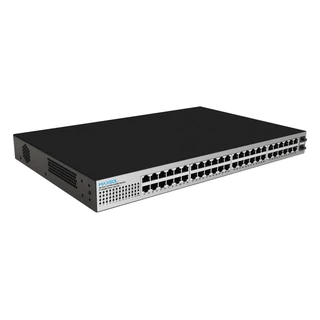

48-Port Long-Range Gigabit Unmanaged PoE Switch, 400W

Name: 48-Port Long-Range Gigabit Unmanaged PoE Switch, 400W
Brand: Maxsol
SKU: PS14802SFG

48-port long-range Gigabit unmanaged PoE switch with 2 Gigabit SFP uplinks, 400W PoE budget, wire-speed forwarding, VLAN, Extend, and watchdog.

Key features

Specification

Model: PS14802SFG
Fixed Port: 48*10/100/1000 Base-T/TX PoE ports (Data/Power) 2*1000Base-X uplink SFP fiber slot ports (Data)

PoE Port: Port 1-48 support PoE @ IEEE802.3af/at
Ethernet Port Feature: 10/100/1000Base-T(X) automatic detection, full/half Duplex MDI/MDI-X adaptive
Network Protocol: IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000base-X; IEEE802.3u 100Base-FX; IEEE802.3x.
PoE Standard: IEEE802.3af/at
Fiber Port Feature: Gigabit SFP Port (Fiber module is not included, need to order separately, module options include single/multi-mode, single/dual fiber, LC)
Forwarding Mode: Store and Forward

Switching Capacity: 100Gbps (non-blocking)
Forwarding Rate: 74.4Mpps
MAC: 8K
Buffer Memory: 4M
Twisted Pair Transmission: 10BASE-T: Cat5 UTP (≤300 meter) 100BASE-TX: Cat5 or later UTP (≤100 meter) 1000BASE-TX: Cat5 or later UTP (≤100 meter)
Power Supply Pin: Default 1/2(+), 3/6(-)
MAX / AVERAGE Power Per Port: 30W/15.4W
Total Power / Input Voltage: 400W (100-240V)
Power Consumption: Standby:<15W; Full load:<400W

LED Indicator: Power indicator: PWR (Green) Network indicator: 1-48(Link/Act)/ (Green), 49-50(Link/Act)/ (Green)
Power Supply: Built in switching power supply, AC100~240V 50-60Hz
Operation TEMP / Humidity: -20~+55°C:5%~90% RH non condensing
Storage TEMP / Humidity: -40~+75°C;5%~95% RH non condensing
Dimension: 440*290*44mm
Net /Gross Weight: <4kg / <4.5kg
Installation Method: desktop type, wall mounted,19-inch 1U cabinet installation
Protection: IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-5(Lightning protection/Surge): Power:CM±4kV/DM±2kV; Port: ±6kV
Protection Level: IP30
