Model: PS12402FE-L

24-Port Fast Ethernet PoE+ Switch with Gigabit Uplinks

24-port Fast Ethernet PoE+ switch with 2 Gigabit RJ45 uplinks, 1 SFP slot, 300W power supply, VLAN isolation, Extend mode and PoE watchdog.

Key features

24FE+2GE+1GF Uplink Lite Series 300M Long Range PoE Switch
IEEE 802.3af/at compliant, up to 30 W per PoE port
Internal power adapter supply 300W
Support DIP switch to VLAN / Extend 300M / Watchdog
Support AI network self-healing (watchdog) function
Support desktop and wall-mounted, and rack-mount installation
Plug and Play, no configuration requirements

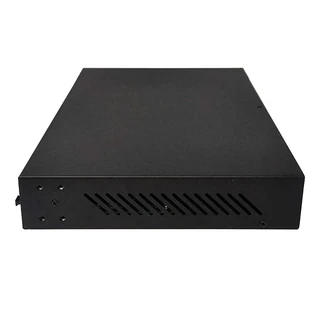

Metal case, internal power supply, excellent heat dissipation performance for long-term stable operation
6KV surge protection function

Send Inquiry By Emailsales@maxsol-tech.com

DatasheetDownload View

Specification

Interfaces

Model: PS12402FE-L
Fixed Port: 24*10/100Base-T/TX PoE ports (Data/Power) 2*10/100/1000Base-T/TX RJ45 ports (Data) 1*100/1000Base-X uplink SFP fiber slot (Data)

PoE

PoE Port

Port 1-24 support PoE

DIP Switch 3-Mode Function

E – Extend Mode: Extends PoE transmission distance up to 300 m while maintaining stable data and power transmission.

V – VLAN Mode: Isolates each PoE port from one another while allowing communication with the uplink port, improving network security and reducing broadcast traffic.

W – Watchdog Mode: Automatically detects unresponsive IP cameras and restarts their PoE power supply to restore normal operation, minimizing downtime and maintenance costs.

Network Protocol

IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3x.

Ethernet Port Feature

10/100/1000Base-T(X) automatic detection, full/half Duplex MDI/MDI-X adaptive

Forwarding Mode

Store and Forward

Switch Property

Switching Capacity: 10.8Gbps
Forwarding Rate: 8.04Mpps
MAC: 2K
Buffer Memory: 2M
Twisted Pair Transmission: 10BASE-T:Cat5 UTP(≤300 meter) 100BASE-TX:Cat5 or later UTP(≤100 meter) 1000BASE-T: Cat5 or later UTP (≤100 meter)
Power Supply Pin: Default 1/2(+), 3/6(-);
MAX / AVERAGE Power Per Port: 30W/15.4W
Total Power: 300W
Power Consumption: Standby:<15W;Full load:<300W

Physical Characteristics

LED Indicator: Power indicator: PWR (Green); Network indicator: 1–27(Link/Act) (Green)

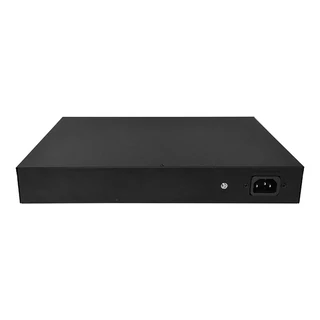

Power Supply: Built-in power adaptor AC100~240V 50-60Hz, 300W
Operation TEMP / Humidity: -20~+55°C:5%~90% RH non condensing
Storage TEMP / Humidity: -40~+75°C;5%~95% RH non condensing
Dimension: 310*205*45mm
Net /Gross Weight: <3.0kg / <4kg
Installation Method: desktop type, wall mounted,rack-mount installation
Protection: IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge; IEC61000-4-5(Lightning protection/Surge): Power:CM±4kV/DM±2kV; Port: ±4kV.
Protection level: IP30

Package Contents

Switch: 1 pcs
Power cord: 1 pcs
Quick installation guide: 1 pcs
